"How do I know in advance whether to perform a steady-state or an unsteady CFD simulation?" is a common question I get asked. The simple answer is, "you don't know", so I thought I would provide some help on when to use unsteady (also know as transient or time-dependent) simulations. I'll outline a process and tell-tale signs to help you make a guided decision.

Unsteady Vortex Shedding Caedium CFD SimulationVelocity contours (high definition video)

When you run a steady-state simulation it uses an iterative scheme to progress to convergence. If you see persistent oscillations in the residuals plot (solver diagnostics) and/or oscillations in a key monitor, such as a drag force monitor, with increasing iterations then that's a good indicator the flow may be unsteady (transient) and the simulation needs to be run as an unsteady simulation. When you are unsure as to whether your simulation is unsteady or steady-state it is always worth running a steady-state simulation first because it typically takes an order of magnitude less CPU time to complete. If the steady-state simulation is sufficient then you'll save a lot of time over running an unsteady simulation.

As an example let us examine the residual and force monitors for an unsteady simulation of vortex shedding behind a cylinder and compare them with those generated by the same simulation running, incorrectly, in steady-state mode.

Correct Unsteady CFD Simulation

Correct Unsteady Forces

Notice the periodic oscillation of lift in the force monitor with increasing time as you'd expect for this vortex shedding example.

Correct Unsteady Residuals

The residual monitor for an unsteady simulation is useful to see that the solvers are behaving correctly, which is indicated by a relatively smooth variation with increasing iterations. The actual residual values and profiles are not significant.

Incorrect Steady-State CFD Simulation

Incorrect Unsteady Forces

Remember that vortex shedding behind a cylinder is unsteady as described in the previous section, so it is interesting to see what happens when you try to run the same simulation in steady-state mode. Clearly after only 20 updates (200 iterations) there is something wrong, as expected, indicated by the widely oscillating lift force. For a steady-state simulation you'd expect some oscillations in the lift force values when you first start the simulation and then see them damp out to a fixed value with increasing iterations.

Incorrect Unsteady Residuals

Something is also wrong, as expected, with the residuals. For a steady-state simulation you should see all residuals reduce relatively smoothly toward or below 1e-3 with increasing iterations.

Correct Steady-State CFD Simulation

Steady-State Membrane CFD SimulationPressure contours on both sides of a membrane

For a steady-state simulation the residuals and force profile should be something similar to those in the tutorial "Flow Over a Double-Sided Membrane".

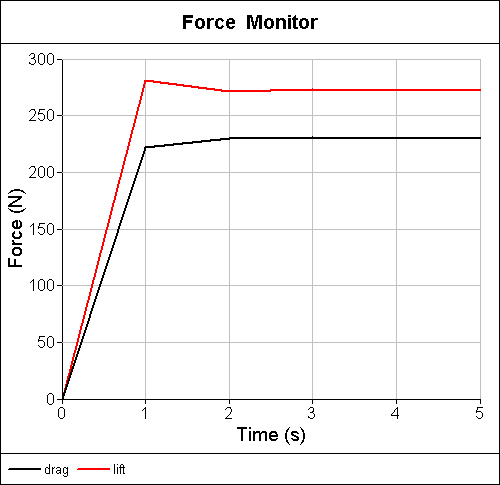

Correct Steady-State Forces

Note the converged lift and drag force values with increasing iterations.

Correct Steady-State Residuals

Note the relatively smooth reduction below 1e-3 in all the residuals with increasing iterations.

Conclusion

If you run a steady-state simulation for an unsteady flow then you will get poor results, but as I just pointed out there is usually a good indication from the steady-state results that an unsteady simulation was necessary. However, if you find that that your simulation has a steady-state then you can avoid the unnecessary expense of performing an unsteady simulation.
