Downloads

Looking for products? Try Caedium Product Downloads.

Downloads are grouped by file type as follows:

sym (.sym) – native Caedium file, can be viewed with Caedium
BRep (.brep) – geometry file, can be viewed with Caedium using File->Import
STEP (.stp) – geometry file, requires Caedium Exchange add-on, then can be viewed with Caedium using File->Import
IGES (.igs) – geometry file, requires Caedium Exchange add-on, then can be viewed with Caedium using File->Import
Alias/Wavefront (.obj) – faceted geometry file, requires Caedium Exchange add-on, then can be viewed with Caedium using File->Import

Transient Airflow Around a Cylinder

Submitted by symscape on October 12, 2012 - 08:22

Transient airflow around a cylinder that results in vortex shedding. It was created using our Professional add-on.

Vortex Shedding

View file with Caedium

Download vortex-shedding-cylinder.zip (1 MB). Note you need to extract the vortex-shedding-cylinder.sym file from the zip archive prior to opening the file in Caedium.

Read more »

F1 in Schools CO2 Jet Car v2

Submitted by symscape on March 19, 2010 - 09:19

Airflow around the Basilisk Performance CO2 Jet Car v2 entry for F1 in Schools. The simulation is a half-model (using symmetry) which includes moving ground, rotating wheels, and a jet inlet. It was created using our Professional add-on.

CO2 Jet Car v2 Front View of Pressure

View file with Caedium

Download f1-in-schools-flow-v2.zip (13 MB). Note you need to extract the f1-in-schools-flow-v2.sym file from the zip archive prior to opening the file in Caedium.

Read more »

F1 in Schools CO2 Jet Car

Submitted by symscape on February 4, 2010 - 09:38

Airflow around the Basilisk Performance CO2 Jet Car entry for F1 in Schools. The simulation is a half-model (using symmetry) which includes moving ground, rotating wheels, and a jet inlet. It was created using our Professional add-on.

CO2 Jet Car Front View of Velocity

View file with Caedium

Download f1-schools-flow.zip (16.2 MB). Note you need to extract the f1-schools-flow.sym file from the zip archive prior to opening the file in Caedium.

Read more »

PDC Drill-Bit Water Flow

Submitted by symscape on December 10, 2009 - 16:31

A rotating Polycrystalline Diamond Compact (PDC) drill-bit steady-state turbulent simulation of injected water circulating around the cutter head, created using our Professional add-on.

View file with Caedium

Download pdc-bit-flow.zip (13.4 MB). Note you need to extract the pdc-bit-flow.sym file from the zip archive prior to opening the file in Caedium.

Read more »

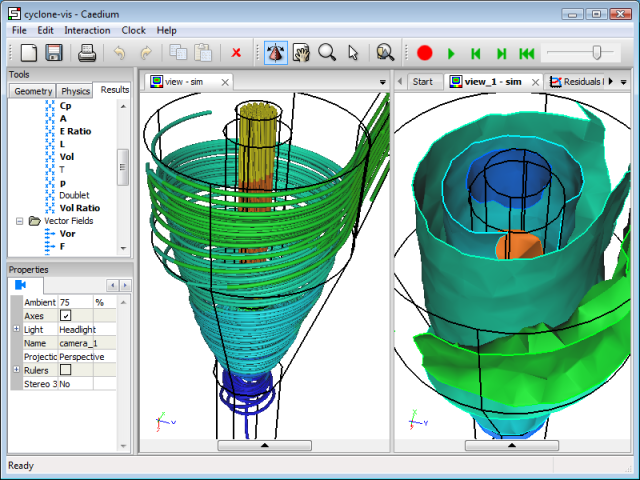

Cyclone Separator Flow

Submitted by symscape on December 10, 2009 - 16:11

Steady-state turbulent airflow through a generic cyclone separator, created using our Professional add-on.

View file with Caedium

Download cyclone-flow.sym (955 KB)

Read more »

Flow Through a Pipe into a Box

Submitted by symscape on November 18, 2009 - 14:47

Steady-state turbulent airflow through a pipe into a box, created using our Professional add-on. Create this case yourself by following the tutorial "Incompressible Flow Through a Pipe into a Box"

Pipe into a Box Flow
